Simulating a scan

In this article, we'll show you how you can simulate a scan from our redirection rule section.

1. Login in the Scantrust platform

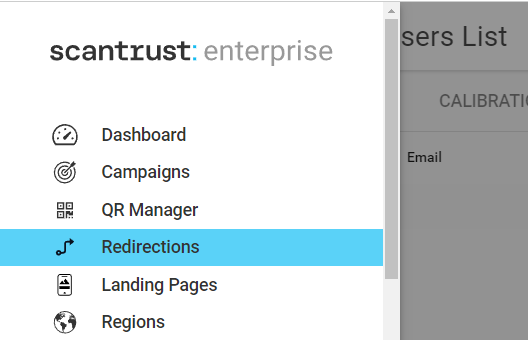

2. Click on the hamburger icon located in the upper left corner of the screen.

3. Select the Redirection section:

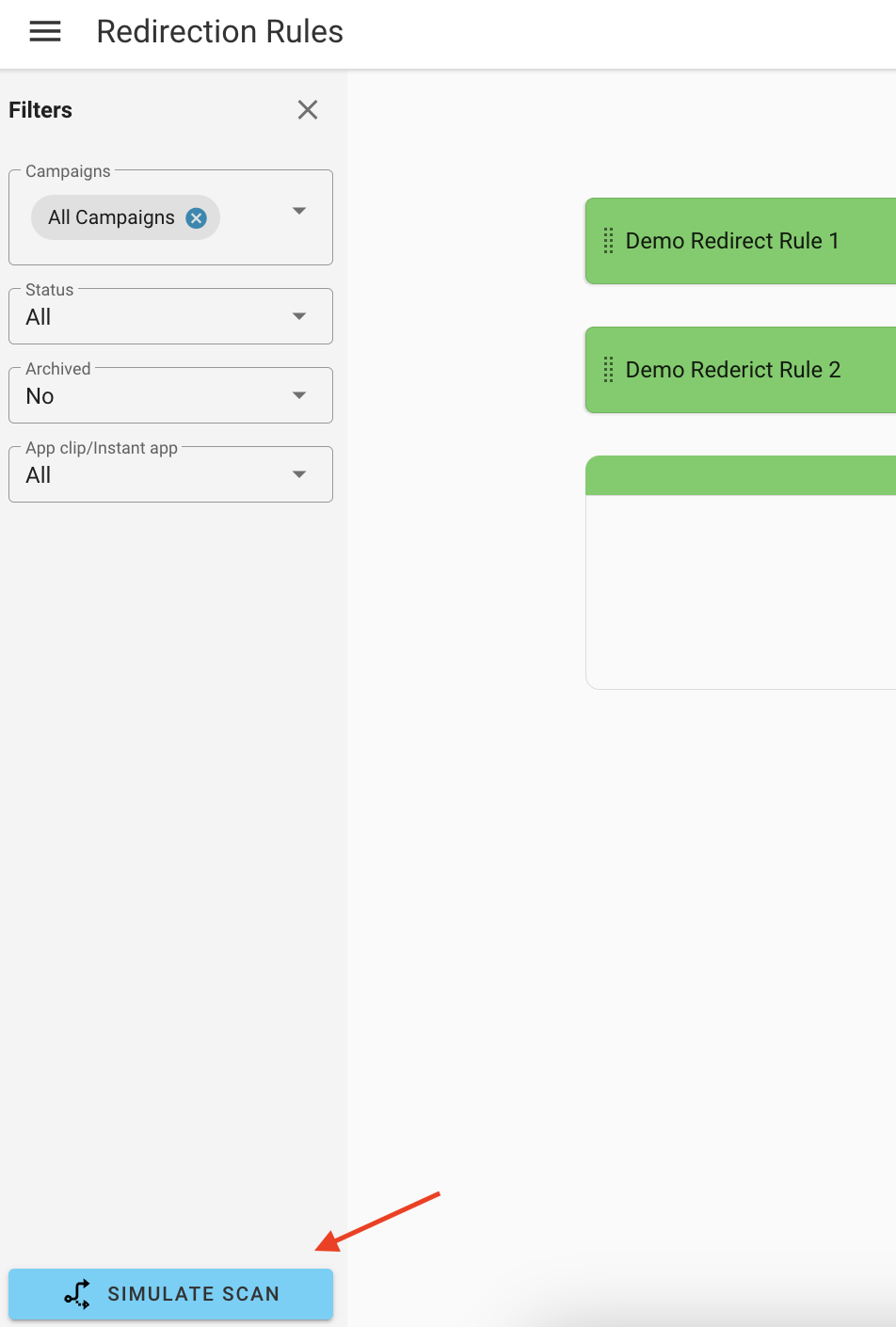

4. Once in there, click on the SIMULATE SCAN button:

Screenshot 2023-11-13 at 12.30.45.png

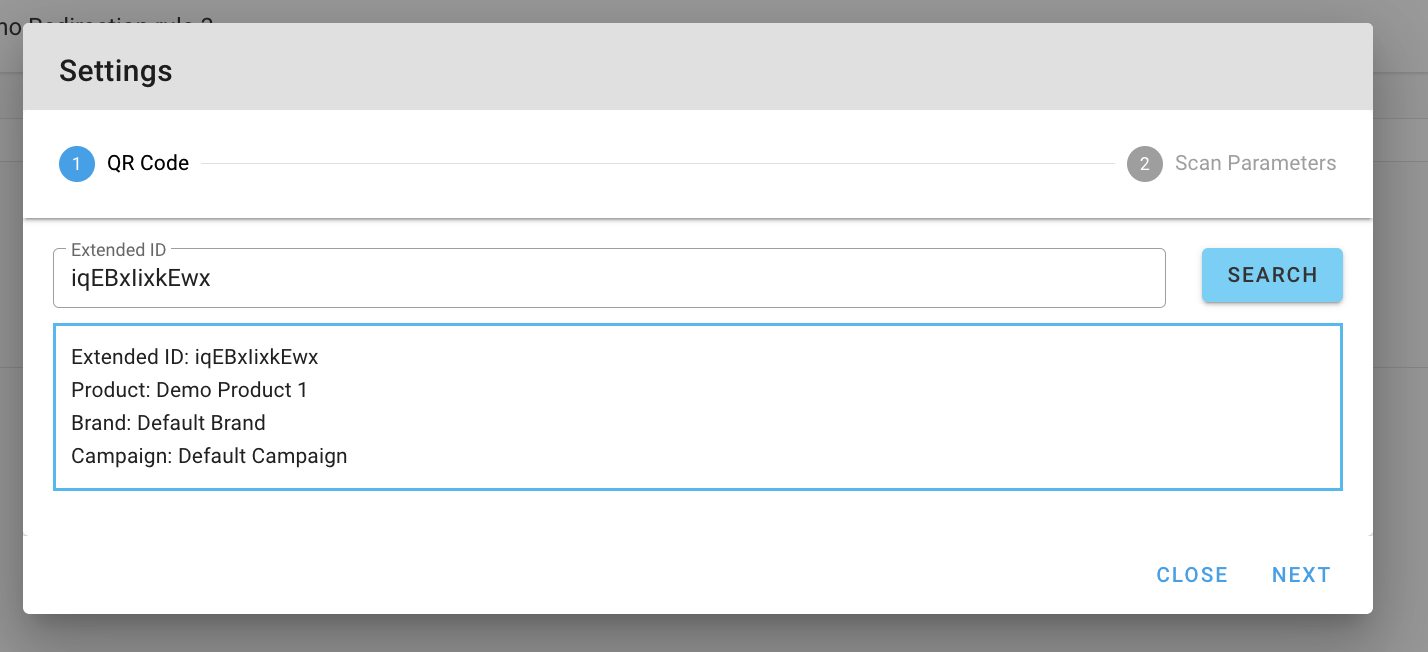

5. Then, on the Settings screen search for the code for which you would like to simulate a scan using the Extended ID:

Screenshot 2023-11-13 at 14.49.43.png



Confirm that the code's associated product information is correct and then click NEXT.

6. On the next screen, select the code status and scan location for which you would like to simulate the scan.

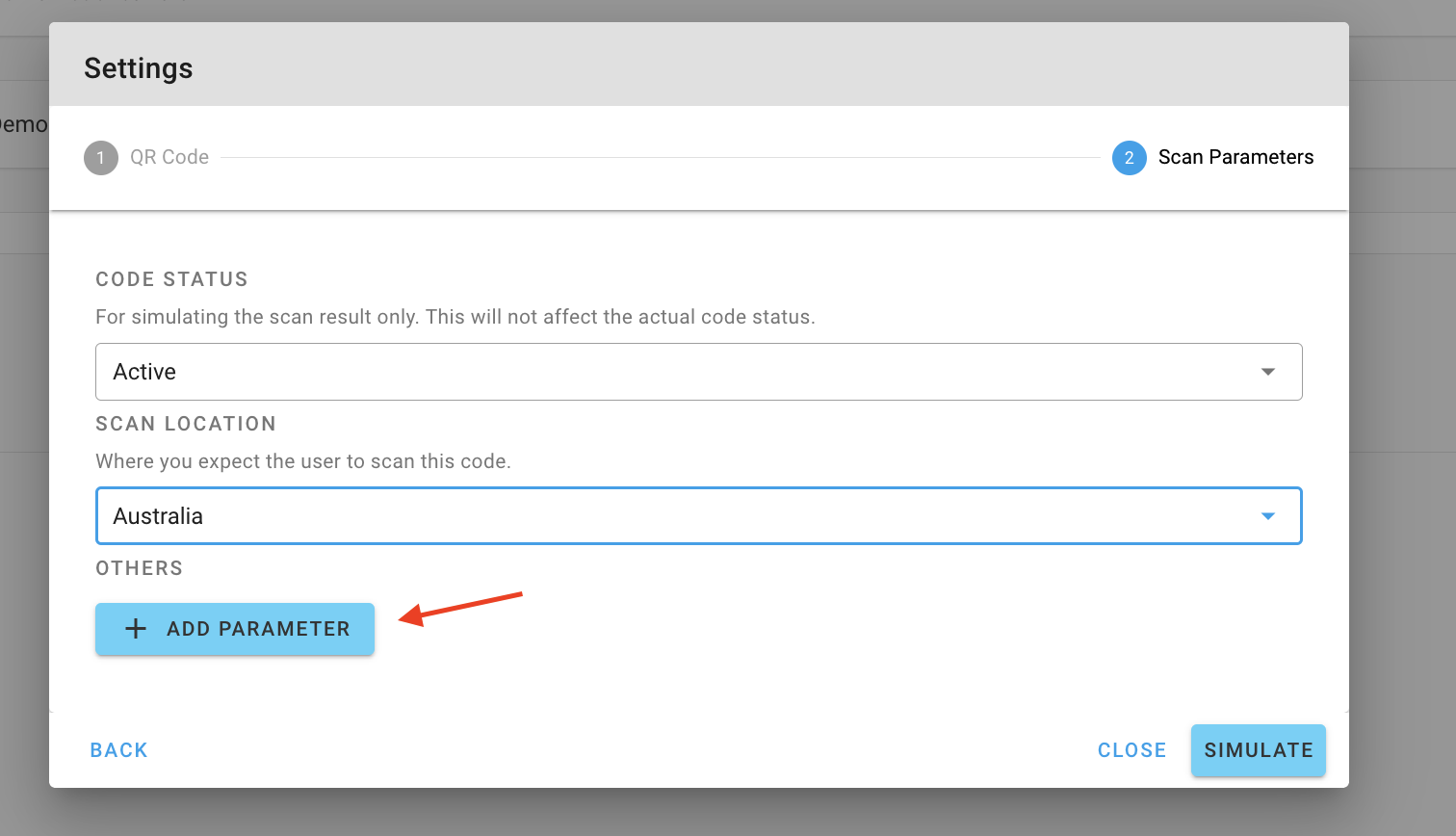

7. Click on the ADD PARAMETER button to add additional parameters for the simulated scan:

Screenshot 2023-11-13 at 14.56.55.png

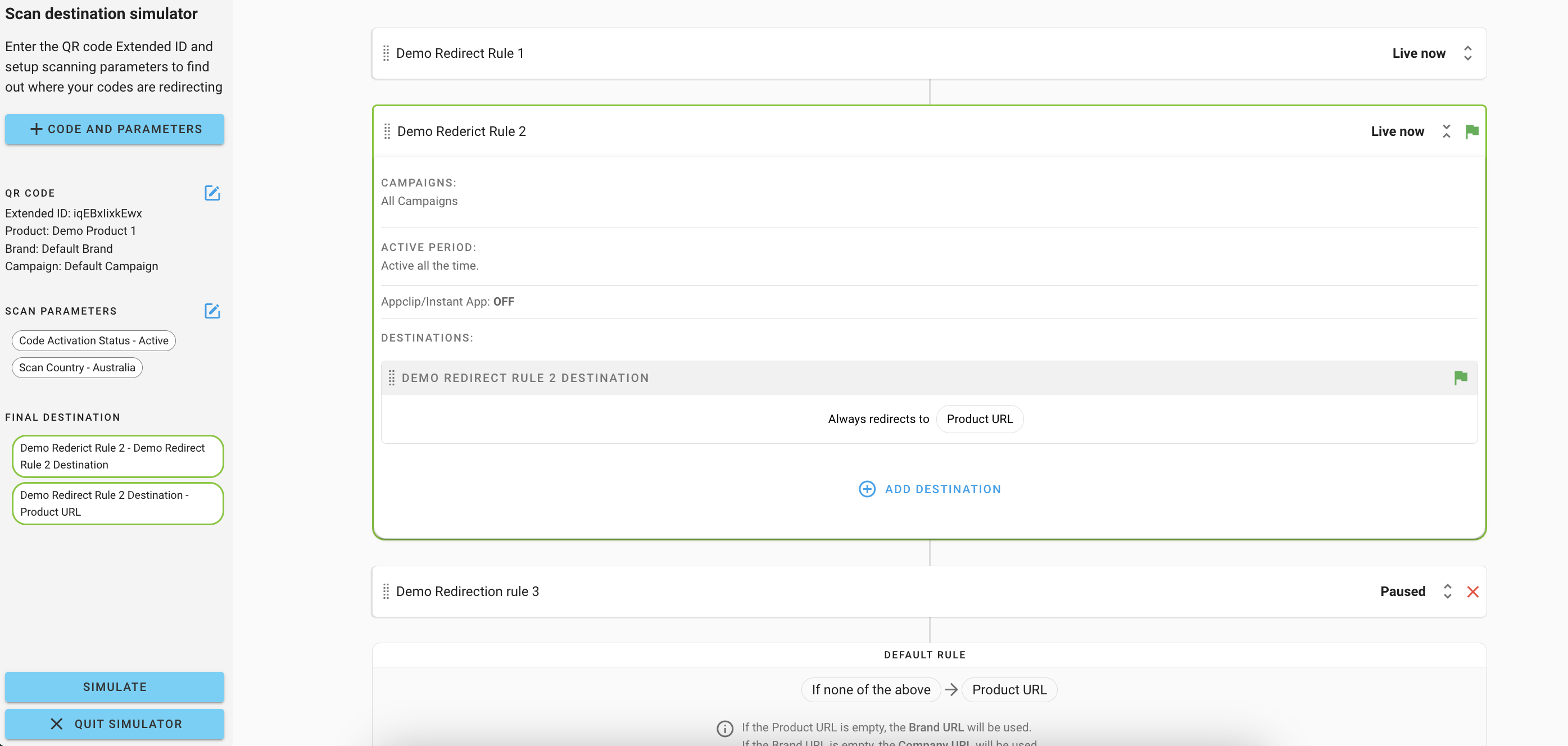

8. Then, click on the SIMULATE button. Your simulation result along with the Redirection rule that is in effect will be displayed as follows:

Screenshot 2023-11-13 at 15.02.16.png



9. Click on the CODE AND PARAMETERS or you can also click on the "more information" icons to see a more detailed breakdown of the simulated scan:

Screenshot 2023-11-13 at 15.02.16.png

10. Click on SIMULATE to run the simulation again.

11. Finally, click on QUIT SIMULATION to exit the simulated scan and return to the redirection rules home page.
