Redirection To Custom URL With Code Parameter passed

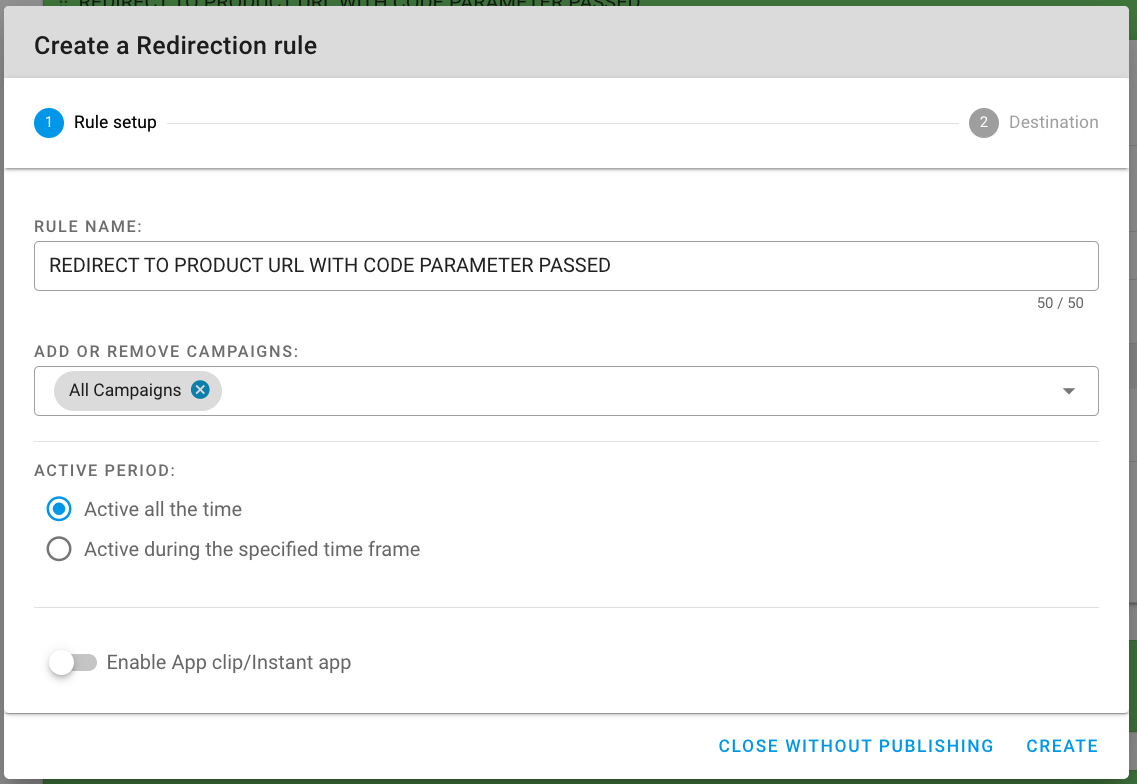

• create a new rule; give a meaningful name

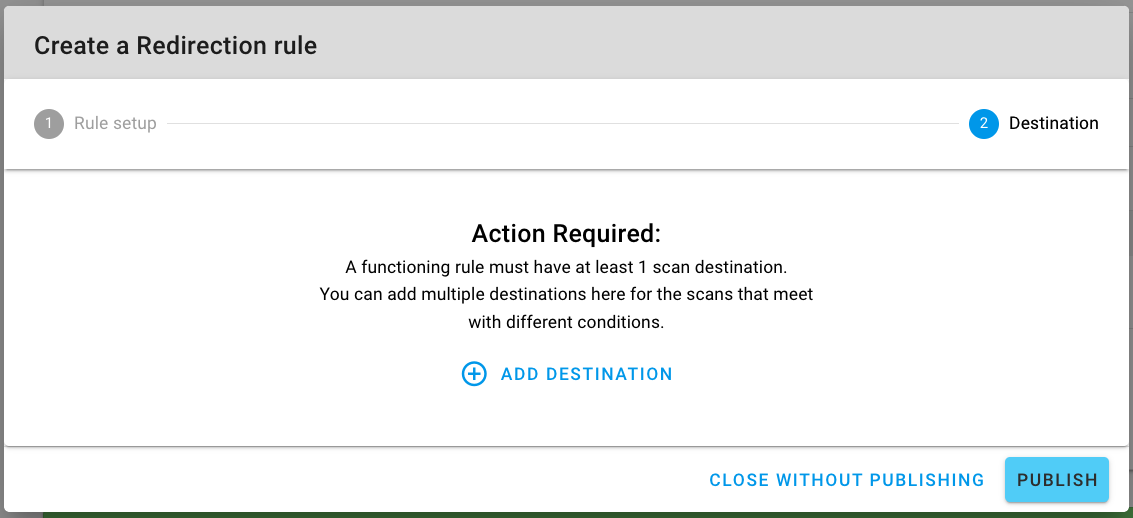

• Add a Destination

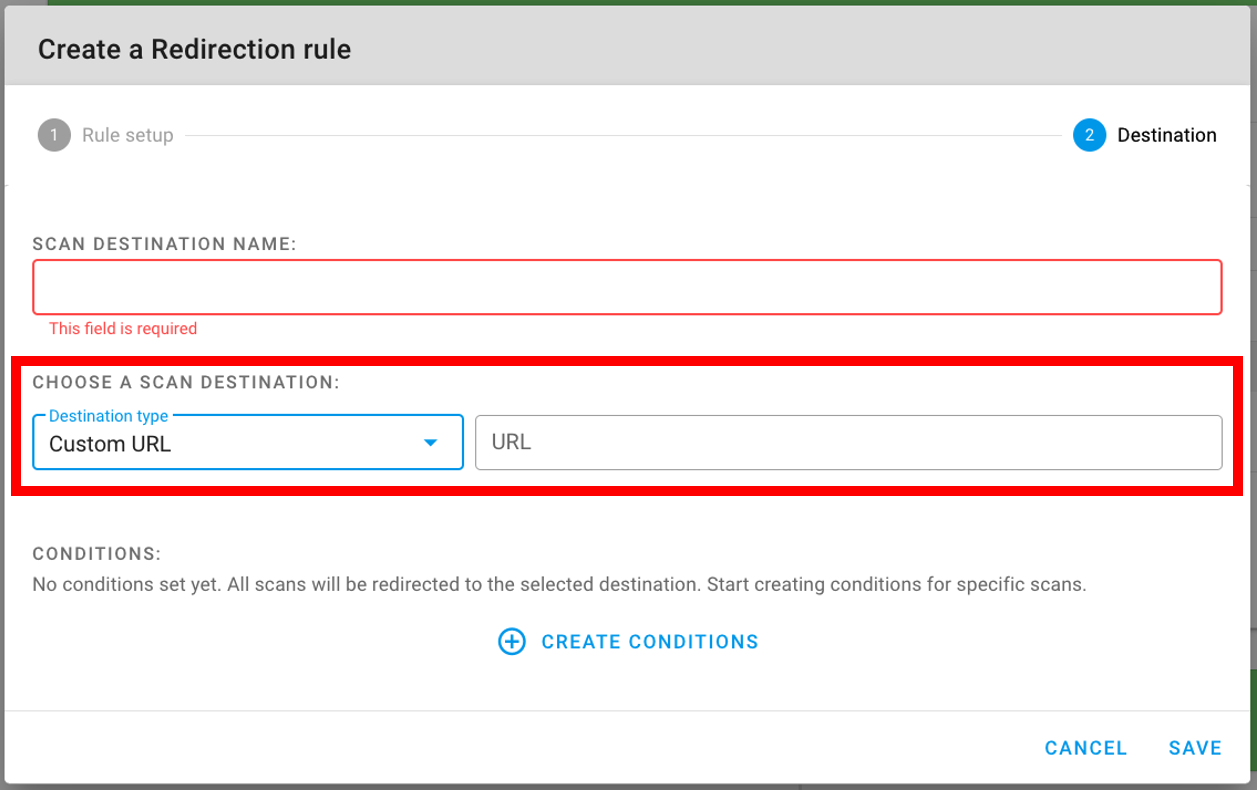

• give a meaningful name and specify CUSTOM URL as destination type

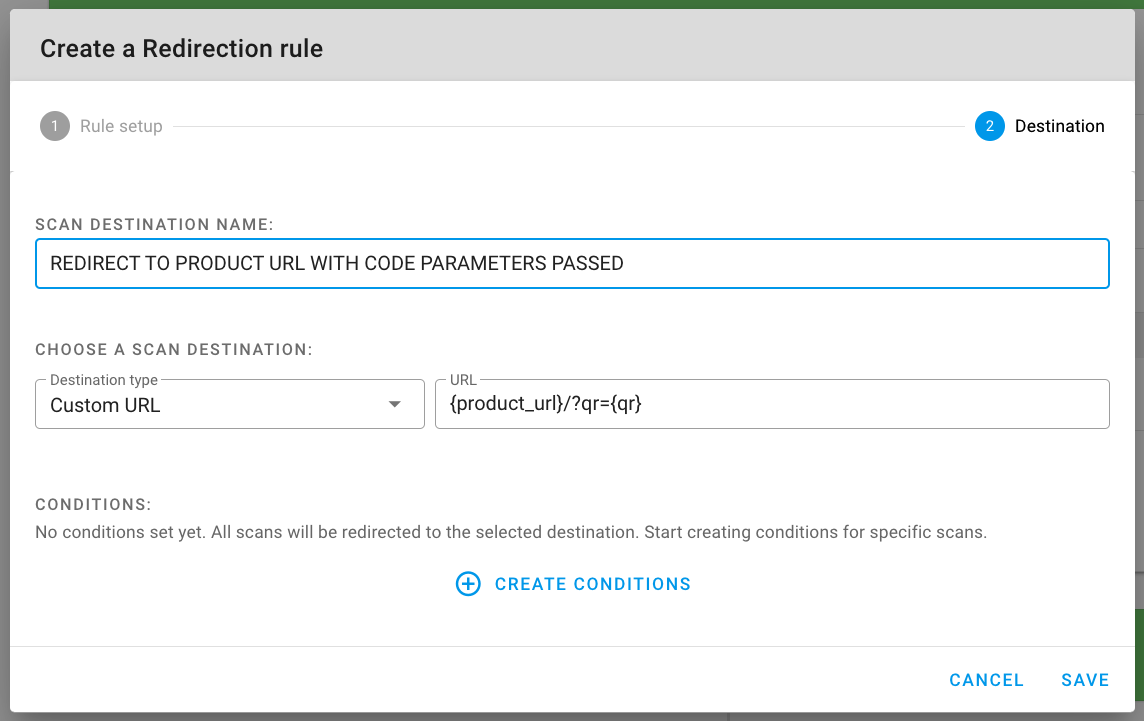

• then add the following into the URL field:
  {product_url}/?qr={qr}
  --> this will pass the URL configured under the product AND the extended ID as follows:
  https://www.scantrust.com/?qr=AcA_Iz6EbjJN




• NOTE: There is a difference between regular codes and GS1 codes. regular codes will simply show up as they are, while with GS1 codes the / will be encoded as  %2F



  REGULAR CODE
  https://sbaf.st4.ch/AcA_Iz6EbjjN
  {product_url}/?qr={qr}
  https://www.scantrust.com/10/?qr=AcA_Iz6EbjjN




  GS1 CODE
  https://sbaf.st4.ch/01/02007030099995
  {product_url}/?qr={qr}
  https://www.scantrust.com/?qr=01%2F02007030099995

  To show the correct GS1 code in the URL, add and exclamation mark (!)
  {product_url}/?qr={qr!}
  https://www.scantrust.com/?qr=01/02007030099995


The information that can be passed through the URL

{product_url}/?qr={qr!}&scan_id={id}&sku={sku!}&Latitude={lat}&Longitude={lng}

https://www.scantrust.com/?qr=01/12345678912345&scan_id=f4ee05a3-cf99-458d-b7c2-e184c07ebc4b&sku=gs1_code_product&Latitude=31.222&Longitude=121.458
