QR Manager is a tool used to create and download non-serialized SID (Scantrust ID) codes.

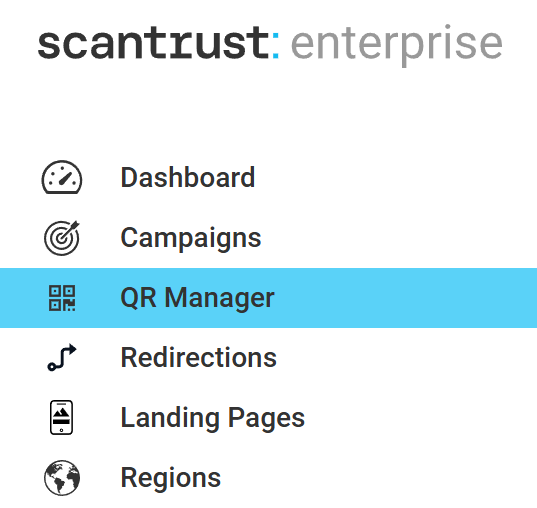

You can access the tool from the hamburger menu on the Scantrust Enterprise Portal.
Please take note that QR Manager is not a tool that is accessible to all customers. Please contact support@scantrust.com if you cannot see the tool on the menu.
Assuming you already have products and QR codes created in QR Manager. (If not please check QR Manager Introduction)
QR Image Download

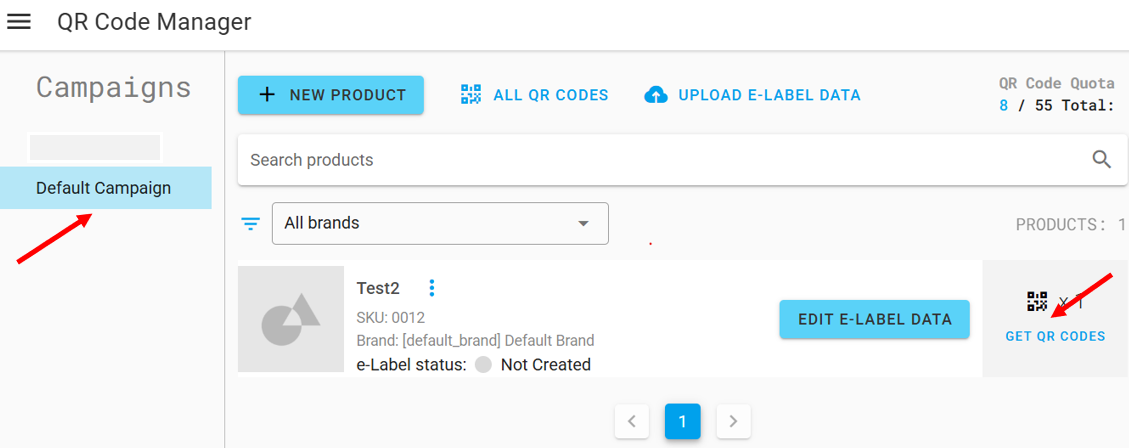

1. In the QR manager section, select the correct campaign, find the product, and click on the button "GET QR CODES":

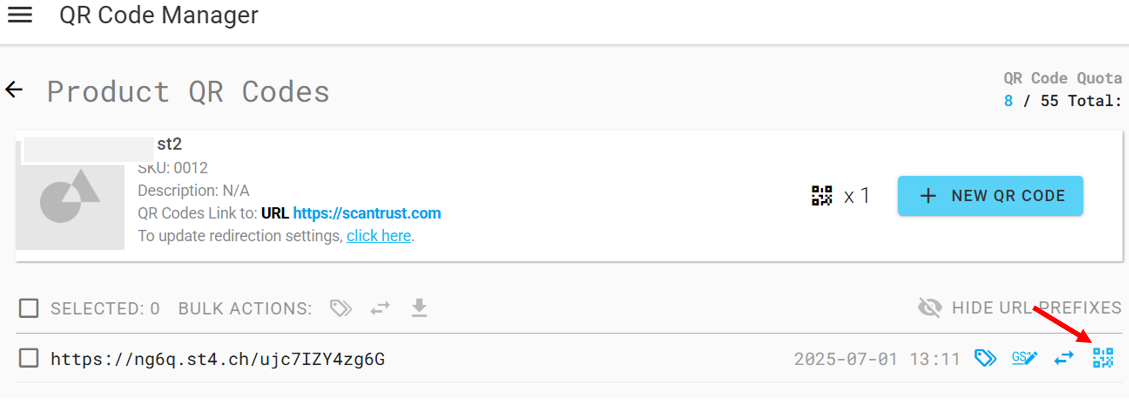

2. Get a single QR code - click on the QR code button on the right side of the code:

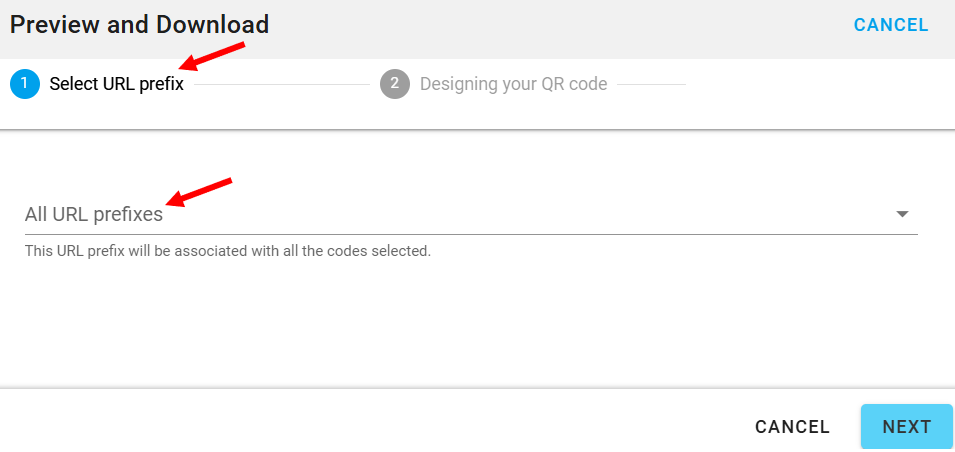

3. The next step would be designing your QR code. IMPORTANT TO NOTE: If you have configured a custom URL prefix, the system is going to let you select the prefix you want to assign to the code or codes you are downloading:

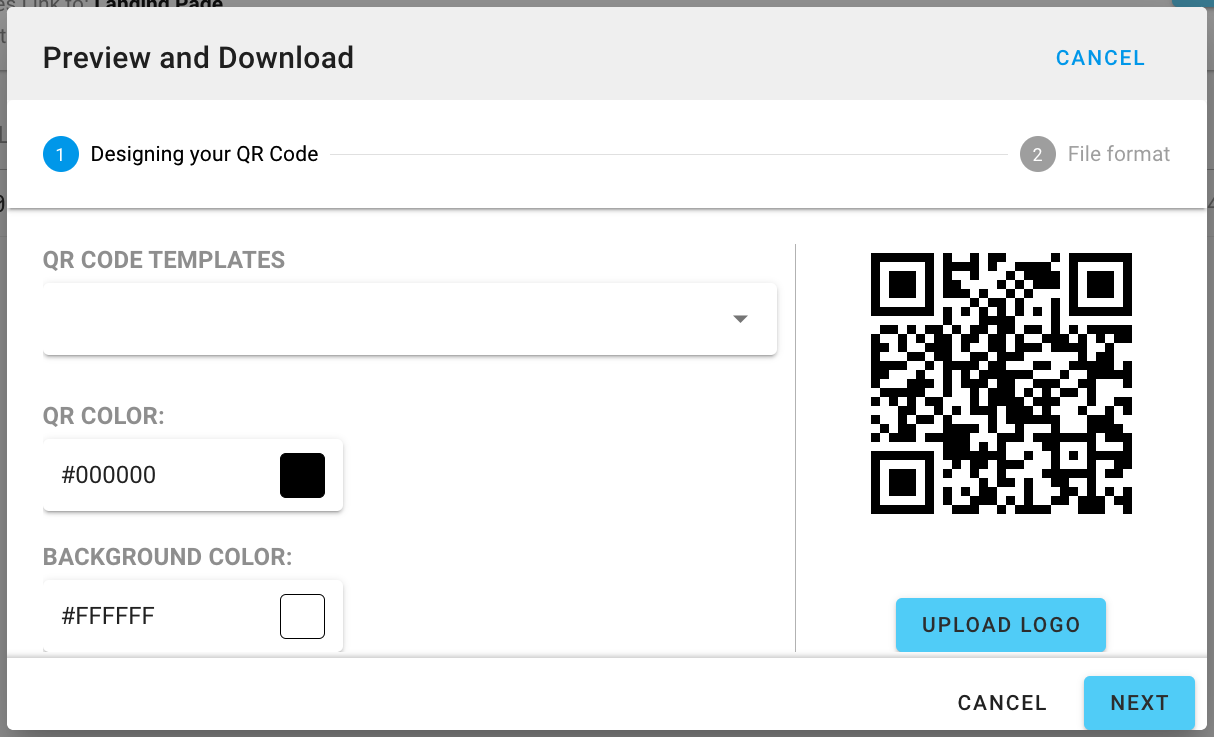

Then, you'll be able to design your code:

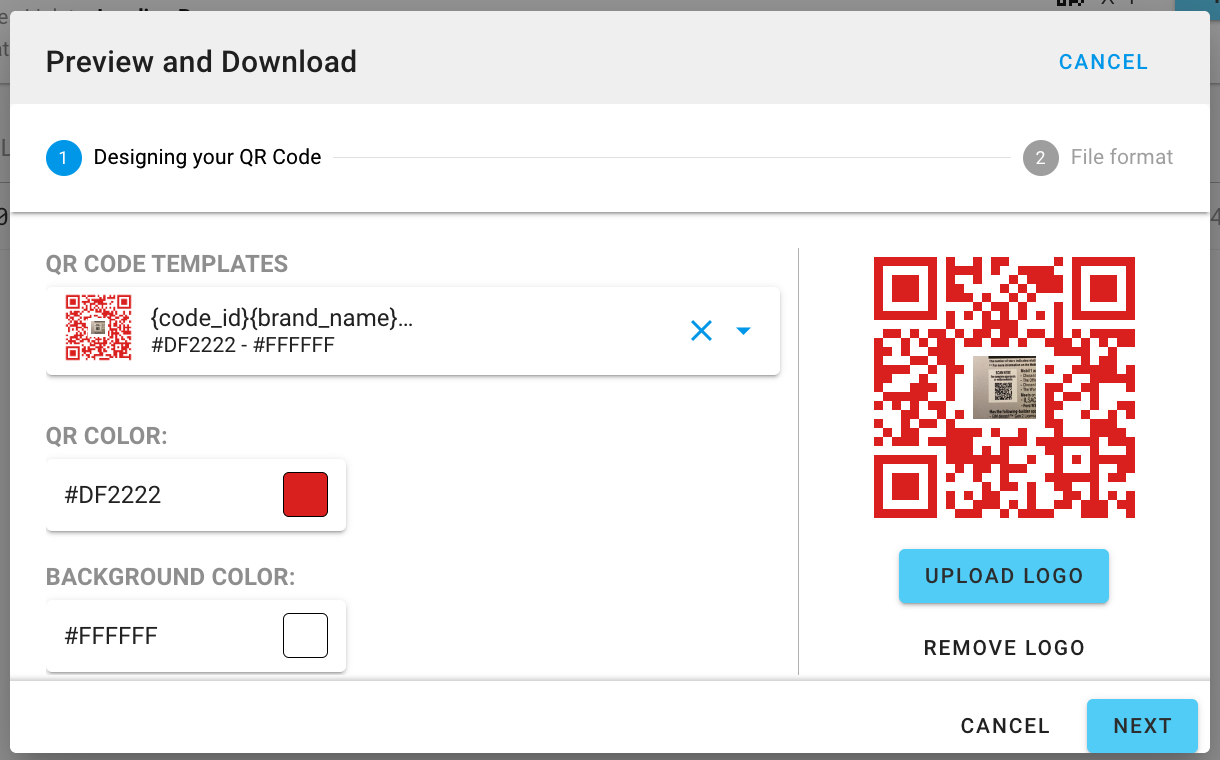

You can use the design from the templates (if your company has saved one) by clicking on the: QR Code Templates option or continue with the process, by:
- Customize the QR code color - recommend dark color on a light background for better contrast
- UPLOAD LOGO - insert a picture in the middle of the QR code
Once you are happy with the design, click on NEXT:

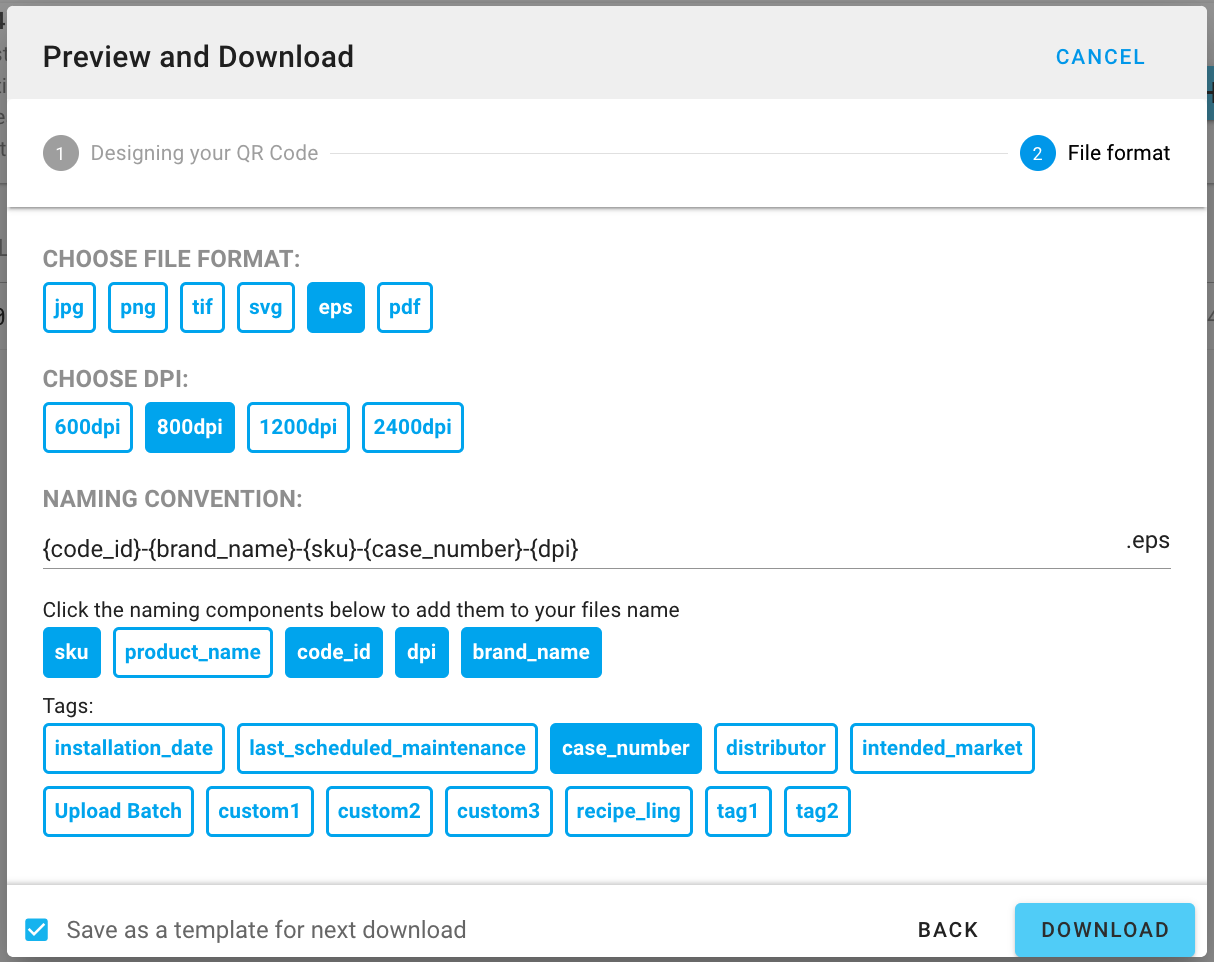

4. Select the image format and naming convention:
- FILE FORMAT - Depending on the usage of the QR code(eg: digital display or print) you might need to double-check with your design team.
- NAMING CONVENTION - helps you identify your files.
- To save your current design as a template for later use, add the checkmark in the bottom left corner. The template will save all settings including file format, naming conventions, etc.
Click the DOWNLOAD button to get your QR Code image file.
Bulk Download
To get multiple QR codes, in the beginning:

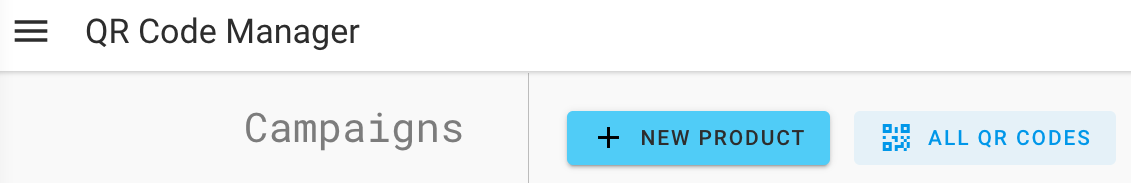

1. Go to ALL QR CODES:
2. Select the codes you want to download and click the download button.
3. Follow the same steps described above.
